In a pneumatic framework, air leaving the blower is commonly inadmissible for any proposed application. The compacted air is normally wet, filthy and at the inaccurate pressure, which are qualities that could harm downstream hardware. A FRL (Filter, Regulator, Lubricator) is utilized to condition compacted air to the correct quality and can be seen in. A pneumatic FRL unit is a framework that is involved in three separate units that do various periods of molding: filtration, guideline and oil. Albeit regularly utilized as a solitary framework, it doesn’t generally come as a solitary unit. Or maybe a solitary regulator unit or filter-regulator unit is utilized. Lubricators are normally not utilized in current pneumatic frameworks with self-greasing up hardware.

Air Filter

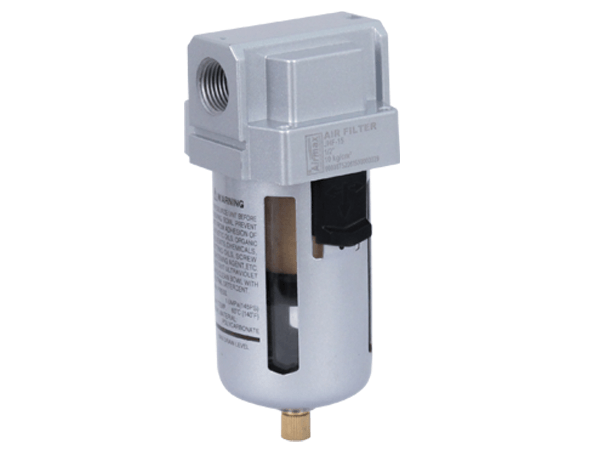

The filter gets frees of any impurities, for example, dust, water, fume or oil present in air leaving the blower. Legitimate filtration is pivotal in boosting the life span of downstream gear. Since filtration is the principal phase of molding, the filter is normally introduced upstream of other gear. It works by first making a cyclonic activity of approaching air. This stores hefty pollutants at the base bowl. Next, the compacted air is constrained through a filter lattice of satisfactory size, viably filtering out foreign substances. Over the long run, the gathered foreign substances and dampness are taken out in both of the accompanying ways, contingent upon the sort of the filter: manual or self-depleting. Manual filters require the machine to be killed before the filter can be depleted, while self-depleting filters have a programmed skim controlled valve that occasionally depletes the filter. There are three sorts of filters, ordered by their degree of filtration.

They are:

  • Universally useful filters which eliminate particulate issue and water
  • Oil expulsion filters which likewise eliminate oil and fume
  • Evacuation filters which additionally eliminate fume notwithstanding residue, oil and water
Air regulator

Pressure regulator

The regulator controls the pressure of packed air in a pneumatic framework. It controls the pressure of the air that is provided to downstream gear. This unit is especially fundamental for liquid force applications, for example, blow weapons, pneumatic chambers and air rationale valves. Regulators are additionally called pressure lessening valves. The ideal pressure for an application is set utilizing a control handle mounted on the regulator. This handle changes the inside stomach and needle valve get together to guarantee the right yield pressure. Regulators are by and large one of two sorts; calming or non-easing. Calming regulators can be changed from high to low pressures. At the point when vital, these regulators will deplete abundance downstream pressure. Non-calming regulators then again can’t mitigate downstream pressure. In this manner, different techniques for delivering caught air must be utilized. Regulators are accessible either as a solitary unit or as a filter-regulator two out of one unit.

Air Lubricator


A lubricator brings controlled measures of oil into the progression of compacted air. There are two sorts of lubricators: oil-haze and miniature mist. In oil-haze lubricators, oil is straightforwardly saved as generally enormous beads into the air stream. Then again, miniature haze lubricators initially atomise oil beads to sizes of about 2µm prior to bringing them into the air stream. Grease is important to lessen the grinding created in moving parts. Air driven gear, for example, valves and air engines need oil to build their life expectancy. Anyway most pneumatic frameworks are self-greasing up thus lubricator units are not generally needed.

Choice rules

1) Size of filter component

The degree of filtration feasible is subject to the size of the filter component. The higher the degree of filtration required, the more modest the filter component size. A 40µm filter would filter out all particles bigger than 40µm in size. Note that filter size additionally influences pressure. The better the filter, the higher the pressure drop. In this manner, the worthy pressure drop for an application should be viewed as while choosing a filter size. The normal pressure drop for a given filter is typically indicated by the producer. For applications where both high pressure and greatest filtration are vital, remuneration can be made by utilizing a more powerful blower. The extents of filter components and their relating levels of filtration are arranged as follows:

  • Universally useful filters: These filters come in sizes of either 40µm or 5µm. Filters of size 40µm successfully eliminate particulate issues and about 90% of water. A 5µm estimated filter eliminates all particulate issues and water present in packed air.
  • Oil evacuation (blending) filters: These 0.3µm estimated filters adequately eliminate oil, just as water and particulate issue. This sort of filter is vital for applications where oil is a harming foreign substance, for example, shower painting and for breathing devices.
  • Fume expulsion filter: This super fine filter is measured at 0.01µm. It is equipped for filtering out particles, oil and water, yet additionally fume.
  • Initiated carbon filters: These filters are utilized in applications that require significant levels of immaculateness, for example, food and drugs. They are fit for eliminating smell and taste, alongside each other pollutants.

2)Pressure rating

The necessary pressure of packed air fluctuates for various applications. When the appropriate least working pressure has been resolved for a specific compacted air application, it is essential for air to be provided at a consistent pressure, paying little mind to upstream changes. Regulators are evaluated in a standard 0.05 – 1Mpa controlled pressure range. They are for the most part accessible in operational pressures of 0.1, 0.2, 0.4, 1.0 and 1.6Mpa. The evidence pressure is the greatest pressure above which the regulator can’t work, or it very well might be harmed. It is basic to know all pressure appraisals of a regulator prior to choosing it for an application.

3) Port size

The port size decides the stream rate in a pneumatic FRL unit. The necessary stream rate for a cycle or framework is basic in choosing a FRL of a port size. The higher the necessary stream rate, the greater the port size of the chosen unit should be. The port size for the necessary stream rate can be resolved utilizing the stream factor equation for gases.

4)Lubricator type

There are two kinds of lubricators and their choice is reliant on their expected utilization:

Oil-haze lubricators are most appropriate to weighty applications, for example, substantial burden chambers and single devices. They are ideal for level runs and short distances.

Miniature haze lubricators then again are ideal for complex, multi-part frameworks. They are most appropriate for non-level runs and significant distances.
